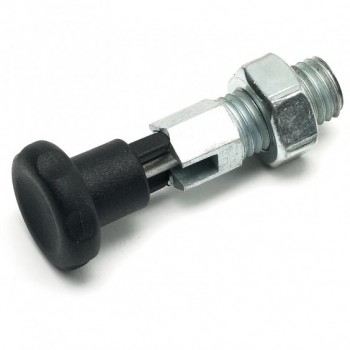

Knob-style Spring Plunger With Locking Position and Standard Pitch Thread

Description

Materials:
(1) Stainless steel turned plunger pin, (Aisi 303).
(4) Reinforced polyamide lobed knob. Cannot be removed.Oils and greases resistant.
W794:
(2) Turned and threaded free-cutting steel plunger body, with seat for locking position and standard metric pitch.
(3) Zinc plated steel spring.
(5) Steel fixing threaded nut, (UNI 5589).
W794 CIN:
(2) Turned and threaded stainless steel plunger body, with seat for locking position and standard metric pitch, (Aisi 303).
(3) Stainless steel spring, (Aisi 301).
(5) Stainless steel (Aisi 304) fixing threaded nut, (UNI 5589).

Surface:
(4) Satin.
(1-2-5) Glossy.

Colour:
(4) Black (RAL 9011).
W794:
(2-5) Zinc plated.
W794 CIN:
(1-2-5) Natural.

ATTENTION:
We recommend making the lodging hole for the plunger nose with external tolerance H7.

ATTENTION:
Nut supplied assembled.

SPECIAL REQUESTS:
On request the nut can be supplied separate.
