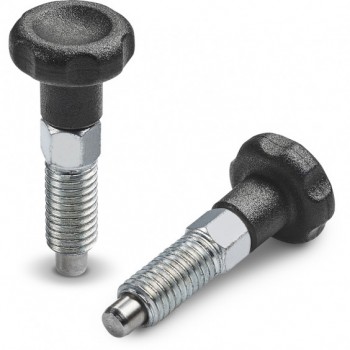

Knob-style Spring Plunger With Fine Pitch Thread

Description

Materials:
(1) Stainless steel turned plunger pin, (Aisi 303).
(4) Reinforced polyamide lobed knob. Cannot be removed.Oils and greases resistant.
W795:
(2) Turned and threaded free-cutting steel plunger body, with standard metric pitch.
(3) Zinc plated steel spring.
W795 CIN:
(2) Turned and threaded stainless steeltting plunger body, with standard metric pitch, (Aisi 303).
(3) Stainless steel spring, (Aisi 301).

Surface:
(4) Satin.
(1-2-3) Glossy.

Colour:
(4) Black (RAL 9011).
W795:
(2) Zinc plated.
W795 CIN:
(1-2) Natural.

ATTENTION:
We recommend making the lodging hole for the plunger nose with external tolerance H7.

SPECIAL REQUESTS:
None.
