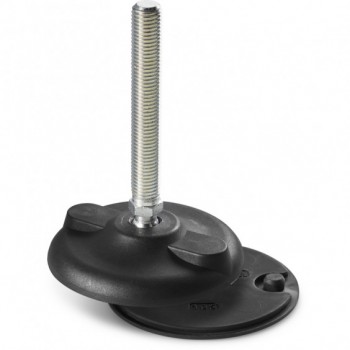

Ground Fixing Mounting Foot With Steel Threaded Stem (type A) and Joint With Ball R15 + Anti-slip Base

Description

Materials:
Reinforced polyamide.
Oils and greases resistant.

Surface:
Satin.

Colour:
Black (RAL 9011).

Inserts:
P903:
Threaded and articulated stem (joint ball R.15) type A with hexagonal base in zinc plated steel, (thread tolerance 6g).
P903CIN:
Threaded and articulated stem (joint ball R.15) type A with hexagonal base in stainless steel (Aisi 303), (thread tolerance 6g).

Anti-slip base:
Non-slip base in 75 Shore SBS thermoplastic rubber, RAL 9011 black color.
Oils and greases resistant. Push-fit fixing.

Anchoring to the soil:
The holes in the foot used for anchoring to the ground soil are supplied closed. To open them, simply break the plastic menbrane with hammer or drill (see drawing).

SPECIAL REQUESTS:
It’s possible to supply the inserts with different lengths, on request and for quantities.
It’s possible to supply the foot on orange colour (RAL 2004), on request and with a MOQ of 100 pieces.
