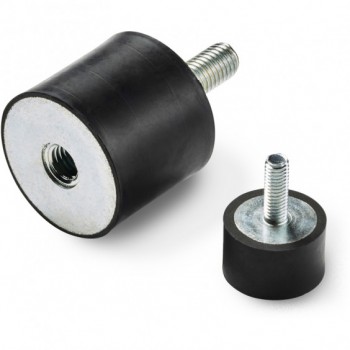

Cylindrical Anti-vibration Mount With Male and Female Thread

Description

Materials:
Natural rubber (NR).

Rubber hardness:
Hardness 55 Shore A, (tolerance ± 5%).

Surface:
Smooth.

Colour:
Black (RAL 9011).

Inserts:
(1) Zinc plated boron steel threaded stud, (thread tolerance 6g).
(2) Zinc plated weldable steel washer.
(3) Zinc plated boron steel bush with blind threaded bore, (thread tolerance 6H).

SPECIAL REQUESTS:
It’s possible to supply the mount with different hardness of 45 or 70 Shore A, on request and with a MOQ of 100 pieces.
It’s possible to supply the mount with different materials, on request and with a MOQ of 100 pieces:
P306= SBR
P307= NBR
P308= EPDM
