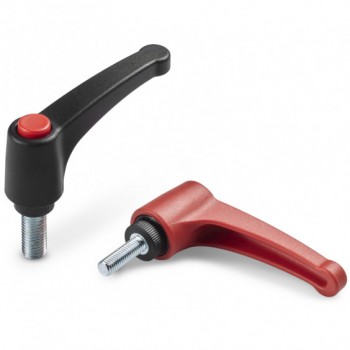

“euromodel” Indexed Clamping Lever With Plastic Push Button and With Threaded Stud

Description

Materials:
Special technopolymer reinforced with high-strength glass fiber.
Oils and greases resistant.

Surface:
Satin.

Lever body and insert colour:
Black (RAL 9011).

Inserts:
Zinc plated steel threaded stud, (thread tolerance 6g).

Push button:
Push button in black polyamide (RAL 9011).

Spring:
Stainless steel spring (Aisi 302).

Alternative colours for lever body and button:
Orange (RAL 2004 cod. 02).
Blue (RAL 5015 cod. 07).
Yellow (RAL 1021 cod. 10).
Red (RAL 3000 cod. 16).
Green (RAL 6024 cod. 17).
Grey (RAL 7035 cod. 13).

SPECIAL REQUESTS:
It’s possible to supply the inserts with different lengths, on request and for quantities.
It is possible to supply inserts in different materials, on request and for quantities.
It is possible to supply colours as shown on colour table page (Attention reduce range) [pageTitoloTabellaColori.
