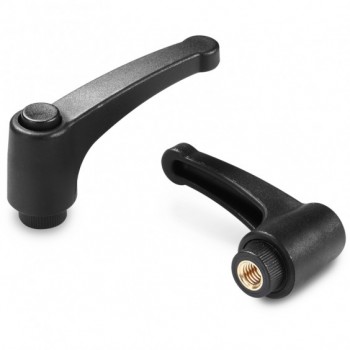

“euromodel” Indexed Clamping Lever With Plastic Push Button and Stainless Steel Threade Insert

Description

Materials:
Special technopolymer reinforced with high-strength glass fiber.
Oils and greases resistant.

Surface:
Satin.

Lever body and insert colour:
Black (RAL 9011).

Inserts:
Stainless steel insert with threaded blind bore (Aisi 303), (thread tolerance 6H).

Push button:
Push button in black polyamide (RAL 9011).

Spring:
Stainless steel spring (Aisi 302).

Alternative colours for lever body and button:
Orange (RAL 2004 cod. 02).
Blue (RAL 5015 cod. 07).
Yellow (RAL 1021 cod. 10).
Red (RAL 3000 cod. 16).
Green (RAL 6024 cod. 17).
Grey (RAL 7035 cod. 13).

SPECIAL REQUESTS:
It is possible to supply colours as shown on colour table page (Attention reduce range) [pageTitoloTabellaColori.
