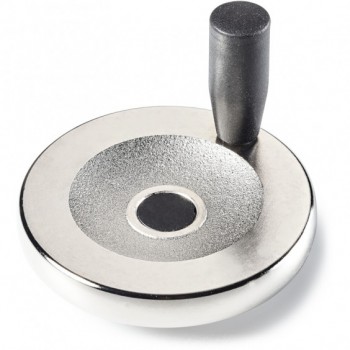

Aluminium Solid Control Handwheel With Revolving Handle

Description

Materials:
Die cast aluminium.

Surface:
Satin finish surface, except for the low roughness turned areas labeled with “T”.

Colour:
Nickel plated ( galvanic treatment).

Alternative colour (50 pieces MOQ):
Black epoxy powder painted:
(change the final letter of the code (H) with the V (W297100.AD10V).

Central Cap:
Black central cap on polyamide (RAL 9011 code 01).

Alternative cap colours:
For black handwheel the central cap will be grey (RAL 7035 code 13).

Side handle:
Revolving handle art. M129 [pageFAM_M129.

Hole:
Smooth right through hole, reworked with H7 tolerance.

Fixing:
For fixing system, or execution of keyway or square holes, please refer to the technical notes attached to the catalogue.

SPECIAL REQUESTS:
It’s possible to supply the handwheel with customised hole d1, on request and for quantities.
