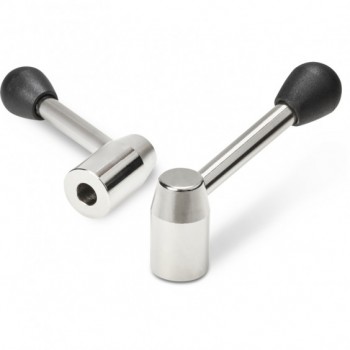

Fixed Metal Lever With Inclined Arm and Smooth Hole

Description

Materials:
W502:
Steel with resistance class 5.8.
W502CIN:
Stainless steel, (Aisi 303).

Surface:
Low roughness turned surface.

Colour:
W502:
Nickel plated ( galvanic treatment).
W502CIN:
Natural.

Alternative treatment:
Black-oxydation:
(change the final letter of the code (H) with the B (W502070.SM0801B)).
Zinc plating:
(change the final letter of the code (H) with the Z (W502070.SM0801Z)).

Handgrip:
Short knob article I500 in black reinforced PA6 (RAL 9011), [see pageFAM_I500.

Handgrip fastening:
Push-fit, removable.

Hole:
Female smooth blind bore, (bore tolerance H10).

Fixing:
For fixing system, or execution of keyway or square holes, please refer to the technical notes attached to the catalogue.

SPECIAL REQUESTS:
It’s possible to supply the levers with customised hole d1, on request and for quantities.
It possible to supply the knob with colours as shown on the colours table page [pageTitoloTabellaColori.
