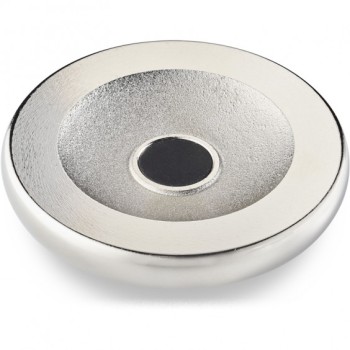

Aluminium Control Handwheel With Smooth Bore

Description

Materials:
Die-cast aluminium.

Surface finish:
Satin finish, except for the sections (T) with low surface roughness obtained by turning.

Colour:
Nickel plated (galvanic treatment).

Alternative colours (min. 50 pieces):
Black epoxy powder coated:
(replace the final letter of the code (H) with letter V (W296100.AD10V).

Cap:
Central cap in black polyamide (RAL 9011 code 01).

Alternative Cap colours:
The central cap for the black handwheel will be grey (RAL 7035 code no. 13).

Hole:
Smooth through hole, remachined with H7 tolerance.

Fixing method:
For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.

Special Requests:
Upon request and for special quantities handwheels can be supplied on customer’s drawing with hole diameter d1.
