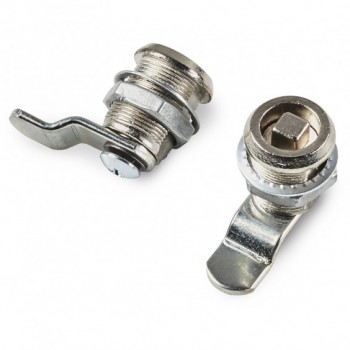

Universal Tubolar Lock With 7 Mm. Square Insert Key

Description

Materials:
(1) Die-cast zamak lock body M19 (stator) rotor. 7 mm. square tubolar key.
(2) Elastic washer d.24×1 with bore d. 19,4.
(3) Steel fixing threaded hexagon nut M19x1.
(4) Steel locking lever, (Qn shape N flat – Qe shape E offset).
(5) Conical elastic steel washer d. 12×1,5).
(6) Steel Phillips dome head screw M5x8.

Surface:
(1) Nickel-plated.
(2-5) Black-oxide.
(3-4-6) Standard zinc plating.

Key (Optionale):
(7) Die-cast zamak key, Art. J145080.Z07.
NOTE: The key is not supplied. Order separately.

Rotation:
90°.

SPECIAL REQUESTS:
None.
