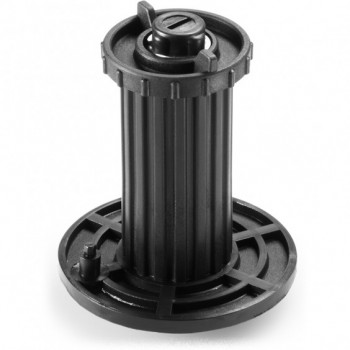

Spool Holder Without Stud for Mig/mag Welding Wire Coil

Description

Materials:
(1-3-4-6) Reinforced polyamide.
Oils and greases resistant.

Surface finish:
Satin.

Colour:
Black (RAL 9011).

Inserts:
(2) Galvanised steel spring.
(5) Galvanised steel insert with threaded holes.
(7) Thermoplastic TPV rubber washer, 75 Shore.
(8) Galvanised steel washer.
(9) Galvanised steel hexagon head screw, left-hand/right-hand thread. The choice must be made according to the motor rotation direction of the wire feeder.

SPECIAL REQUESTS:
For customers using spool holder S602116 who want to mount a wire coil with width Q=55, plastic adapter S604 can be provided upon request. To be ordered separately.
Upon request, adapter S816 can be supplied for metal coils without internal frame. To be ordered separately.
