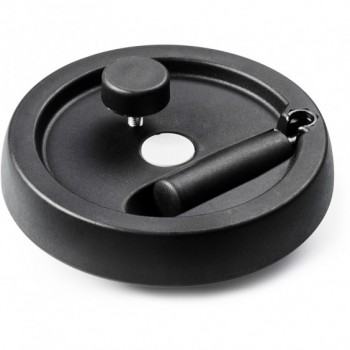

Solid Control Handwheel With Foldaway Handle and Locking Knob

Description

Materials:
Reinforced and stabilised polyamide.
Oils and greases resistant.

Surface finish:
Satin.

Handwheel and handle colour:
Black (RAL 9011).

Central cap:
Grey polyamide (RAL 7035 code 13).

Main insert:
Galvanised steel insert with smooth through hole (tolerance hole H10).

Lateral insert:
Brass insert with threaded through hole.

Side handle:
Revolving handle that folds into the handwheel, with hexagonal connection.
Reinforced polyamide handle. Black-oxide treated internal mechanism. Fixed with black-oxide treated hexagon socket button head screw ISO 7838.

Locking knob:
Black cylindrical knob Ral 9011 art. G793-36 with threaded stud [pageFAM_G793. Caution: the R and Q2 dimensions of the locking knob must be chosen by the customer according to the dimensions of the machinery on which the solid handwheel will be installed.

Fixing:
For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.

SPECIAL REQUESTS:
On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish. Add the letters ZB to the standard code. Example: C989125.TD1001PZB.
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
