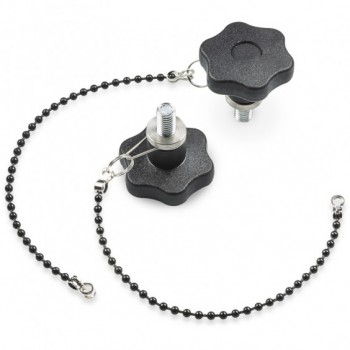

Solid 6 Lobe Handwheel With Threaded Stud and Retention Chain

Description

Materials:
Reinforced polyamide.
Oils and greases resistant.

Surface:
Satin.

Colour:
Black (RAL 9011).

Inserts:
(1) Zinc plated steel threaded stud, (thread tolerance 6g).
(2) Zinc plated steel turned fastening ring, secured with thread lock, and with groove for retaining hook.

Chain:
Chain in black acetal (POM). Joints, retaining ring and hub hook are in stainless harmonic steel, (Aisi302).

SPECIAL REQUESTS:
It is possible to supply inserts in different lengths or by special design, on request and for quantities.
It’s possible to supply the chain in different lengths, on request and for quantities.
It is possible to supply inserts in different materials, on request and for quantities.
It is possible to supply colours as shown on colour table page
