Description
Materials:
(1) Die cast zamak alloy, (zinc, aluminium and copper alloy).
Surface:
Smooth.
Colour:
(01) Black epoxy powder coated, (Ral 9011). (RAL 9011).
Inserts:
(2) Zinc plated threaded studs, (thread tolerance 6g).
(3) Stainless steel pivot pin, (Aisi 303).
(4) Stainless steel spacer washer inserted between the two knuckles, (Aisi 304).
Fixing:

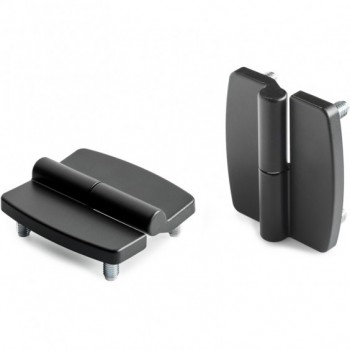

The hinge can be supplied with assembly for door with right-hand opening (DX / RH), or with left-hand opening (SX / LH).
SPECIAL REQUESTS:
None.
