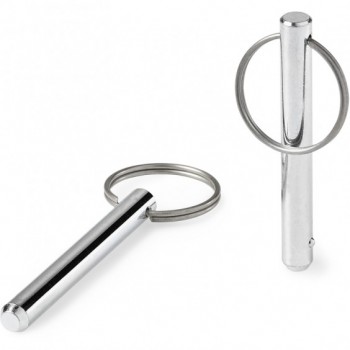

Quick Release Steel Ring Detent Pin

Description

Materials:
(1) Stainless steel harmonic spring ring, (Aisi 303).
(2) Turned free-cutting steel pin.
(3) Stainless steel spring, (Aisi 301).
(4) Stainless steel quenched balls, (Aisi 440C).

Surface:
(1-4) Natural.
(2) Standard blue zinc plating.

Note:
The quick release detent pin is a quick and easy way to connect components or secure pieces to be machined.

ATTENTION:
We recommend making the lodging hole for the plunger pin with tolerance H7.

SPECIAL REQUESTS:
None.
