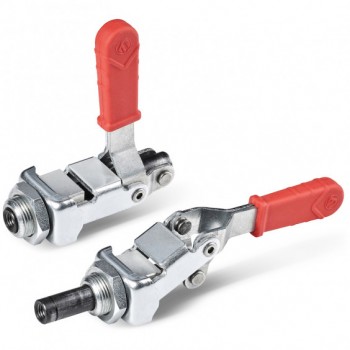

Light Toggle Clamp With Thrust Rod, and Threaded Attachment

Description

Materials:
(1) TPV thermoplastic rubber handle. Hardness 75 Shore.
(2) Base and levers sheared and bent in sheet metal, (DD13).
(3) Rotation pins and fixing rivets in stainless steel, (Aisi 304).
(4) Push rod in automatic steel, with threaded hole.
(5) Steel fixing nut, thin series with fine pitch.
(6) Rectangular washers cut and bent in sheet metal (DD13), for fixing on panel.

Surface:
Smooth.

Colour:
(1) Red Ral 3000.
(4) Black-oxide finish.
(2-5-6) Standard zinc plating.

SPECIAL REQUESTS:
None.
