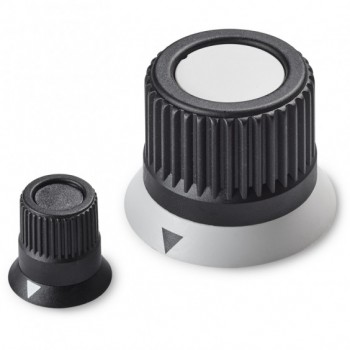

Knurled Knob With Insert With Smooth Hole and Flange

Description

Materials:
Knurled knob and flange:
Reinforced polyamide.
Oils and greases resistant.

Surface:
Knurled knob and flange:
Satin.

Colour:
Knurled Knob:
Black (RAL 9011 cod. 01).
Flange and cap:
Black (RAL 9011 cod. 01).
Grey (RAL 7035 cod. 13).

Central Cap:
Central cap in polyamide.

Inserts:
Zinc plated steel insert with right through smooth bore, (bore tolerance H10).

Fixing screws:
N° 3 zinc plated self-fixing screws TCS 2,9×9,5 UNI 6954.

Scale:
Black pad-printed on grey flange;
Grey pad-printed on black flange;
For flange with arrow only: version Z1.
For flange with numbers from 0 to 9 with 100 graduations: version Z2.

SPECIAL REQUESTS:
It’s possible to supply the inserts with d1 bore by customer design, on request and for quantities.
It’s possible to supply the inserts in different material and treatment-finishes, on request and for quantities.
On request and for quantities, it is possible to supply the articles on colours, as shown on colours table page [ pageTitoloTabellaColori.
