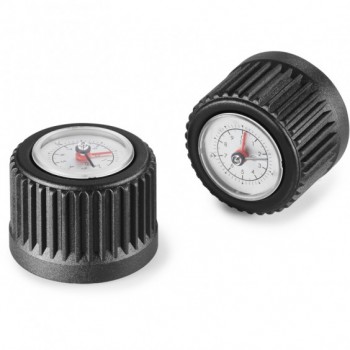

Description
Materials:
Reinforced polyamide. Oils and greases resistant.
Surface:
Satin.
Colour:
Black (RAL 9011).
Mountable indicator
Gravity indicator type “K650050”. The indicator can be only used in a vertical position (machine axis horizontal). The indicator must be purchased separately. For more information see article K650.
Inserts:
Zinc plated steel insert with right through smooth bore, (bore tolerance H10).
Fixing:
The knob is fixed to the shaft by means of the threaded (d4) radial bore, (grub screw not supplied).
Indicator fastening:
Fix the indicator with a threaded grub screw M4. ( Not supplied ) insered in the bore d6.
SPECIAL REQUESTS:
On request and with a minimum of 50 pieces, the inserts can be supplied with hole d1 with tolerance H7 and black-oxyde finish. Add the letters ZB to the standard code. Example: K960078.TD0801ZB.
It’s possible to supply the inserts with d1 bore by customer design, on request and for quantities.
It is possible to supply inserts in different materials, on request and for quantities.
Upon request the control knob can be supplied with a grey flange. The code for this product is: K96178.TD080116.
