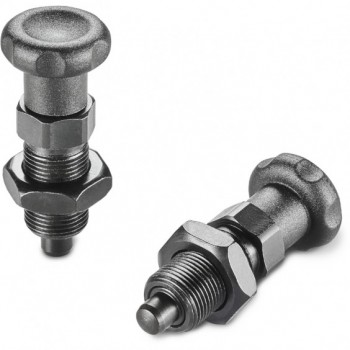

Knob-style Spring Plunger With Fine Pitch Thread and Lock Nut

Description

Materials:
(4) Reinforced polyamide lobed knob. Cannot be removed.Oils and greases resistant.
W801:
(3) Zinc plated steel spring.
(2) Turned high resistant steel plunger body, with fine pitch thread and hexagonal ring.
(1) Hardened high resistance steel turned plunger pin.
(5) Steel fixing threaded nut, (UNI 5589).
W801CIN:
(3) Stainless steel spring, (Aisi 301).
(2) Turned stainless steel plunger body, with fine pitch thread and hexagonal ring, (Aisi 303).
(1) Stainless steel turned plunger pin, (Aisi 303).
(5) Stainless steel (Aisi 304) fixing threaded nut, (UNI 5589).

Surface:
(4) Satin.
(1-2-3-5) Glossy.

Colour:
(4) Black (RAL 9011).
W801:
(1-2-5) Black by oxidation.
W801CIN:
(1-2-5) Natural.

ATTENTION:
We recommend making the lodging hole for the plunger nose with external tolerance H7.

ATTENTION:
Nut supplied assembled.

SPECIAL REQUESTS:
On request and for special quantity the knob could be supply with colours as shown on colour table page. [pageTitoloTabellaColori.
On request the nut can be supplied separate.
