Description
Materials:
Reinforced polyamide. Oils and greases resistant.
Surface:
Satin.
Colour:
Black (RAL 9011).
Fastening Holes:
The same adapter can be used with several spoke handwheels. To fix the adapter firstly select the pair of holes suitable for the diameter of the handwheel in use (the diameters are engraved next to one of the two holes to facilitate selection); drill through with a normal 4.5 mm drill bit, then countersunk the hole to accept the countersunk screw. The two self-tapping screws (TPS 4X16) are provided with the adapter. As an exemple the drawing on the right shows the countersunk holes obtained on a K870.T8001 for a Boteco spoke handwheel having a 200 mm. diameter.
Indicator fastening:
Fix the indicator with a threaded grub screw M04 (not supplied) inserted in the bore d4.

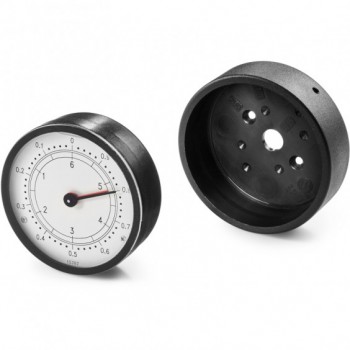

Adapter compatibility:
Adapter K870.T5001 for indicator K65050 on handwheel D. 130-160
Adapter K870.T8001 for indicator K65080 on handwheel D. 160-200-250-350
The adapter can be mounted on the following product series: D205-D206-D208.
SPECIAL REQUESTS:
None.
