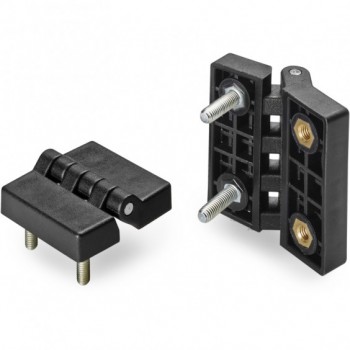

Flat Plastic Hinge With Male and Female Threaded Inserts

Description

Materials:
Reinforced polyamide.
Oils and greases resistant.

Surface:
Satin.

Colour:
Black (RAL 9011).

Inserts:
Zinc plated steel pivot pin.
Brass insert with threaded blind bore, (thread tolerance 6H).
Zinc plated steel threaded stud, (thread tolerance 6g).

SPECIAL REQUESTS:
It is possible to supply inserts in different materials, on request and for quantities.
On request and for quantities, it is possible to supply the articles on colours, as shown on colours table page [ pageTitoloTabellaColori.
