Description
Materials:
Reinforced polyamide.
Oils and greases resistant.
Surface:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Zinc plated steel pivot pin.
Stainless steel thrust and lock springs, (Aisi 302).

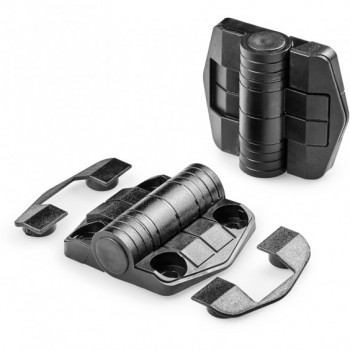

(1) Black pin cap cover in polyamide.
(2) Black hole cap cover in polyamide.
Hole:
Through hole obtained by moulding the plastic, for fixing screw M05.
Preset position:
The springs taht act on the pivot pin have three torque calibrations: 0,7 Nm, 1,1 Nm and 1,7 Nm. The detent positions are : 80° – 115° – 150°.
Attention: a version of the hinge without springs with free movement to 180° is also available, (code O470034.TG5,501).
SPECIAL REQUESTS:
None.
