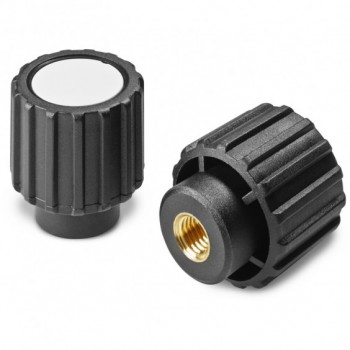

Control Knob With Cap and Female Threaded Insert

Description

Materials:
Reinforced polyamide.
Oils and greases resistant.

Surface:
Satin.

Colour:
Black (RAL 9011).

Central Cap:
Central cap on grey polyamide (RAL 7035).

Alternative cap colours:
Orange (RAL 2004 cod. 02).
Blue (RAL 5015 cod. 07).
Yellow (RAL 1021 cod. 10).
Red (RAL 3000 cod. 16).
Green (RAL 6024 cod. 17).
Black ( RAL 9011 cod. 01).

Inserts:
Brass insert with threaded blind bore, (thread tolerance 6H).
(*) Zinc plated steel insert with blind threaded bore, (thread tolerance 6H).

SPECIAL REQUESTS:
It is possible to supply inserts in different materials, on request and for quantities.
It is possible to supply colours as shown on colour table page (Attention reduce range) [pageTitoloTabellaColori.
