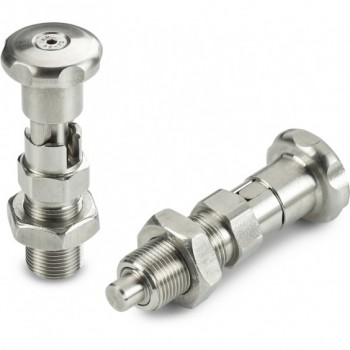

Complete Stainless Steel Knob-style Spring Plunger With Locking Position and Fine Pitch Thread + Lock Nut

Description

Materials:
(1) Stainless steel turned plunger pin, (Aisi 303).
(2) Turned stainless steel plunger body, with fine pitch thread and hexagonal ring, (Aisi 303).
(3) Stainless steel spring, (Aisi 301).
(4) Stainless steel turned lobed knob, (Aisi 303).
(5) Stainless steel (Aisi 304) fixing threaded nut, (UNI 5589).
(6) Stainless steel fixing screw, (Aisi 304).

Surface:
Natural.

Colour:
Natural.

ATTENTION:
We recommend making the lodging hole for the plunger nose with external tolerance H7.

ATTENTION:
Nut supplied assembled.

SPECIAL REQUESTS:
On request the plunger can be supplied disassembled.
On request the nut can be supplied separate.
