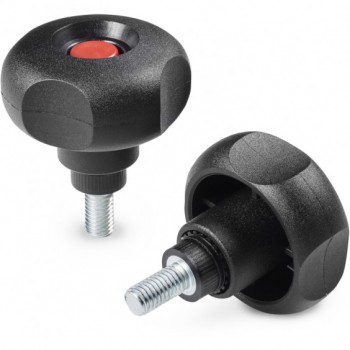

4 Lobe Handwheel With Indexed Insert (push to Use) and Male Thread

Description

Materials:
(3-4) Special high resistance glass fiber reinforced technopolymer.
Oils and greases resistant.

Surface finish:
Satin.

Colour:
(3-4) Black. (RAL 9011).

Central fixing button:
(1) Red polyamide button (RAL 3000 code 16).

Alternative handwheel and button colour:
Orange (RAL 2004 cod. 02).
Blue (RAL 5015 cod. 07).
Yellow (RAL 1021 cod. 10).
Red (RAL 3000 cod. 16).
Green (RAL 6024 cod. 17).
Grey (RAL 7035 cod. 13).
Black (RAL 9001 code 01).

Inserts:
Zinc plated steel threaded stud, (thread tolerance 6g).

Spring:
Stainless steel spring (Aisi 302).

SPECIAL REQUESTS:
Upon request and for special quantities inserts can be supplied with customised length.
It is possible to supply inserts in different materials, on request and for quantities.
Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.
